- The angular computer solved navigation calculations solely through moving mechanical components
- Massive solar storms can cripple satellite navigation systems, but the Angle Computer will survive
- B-52 bomber navigators relied on sky measurements long before modern GPS infrastructure existed
A massive coronal mass ejection from the Sun would send charged particles into Earth’s magnetic field, an event that could induce ground currents powerful enough to destroy unprotected satellite electronics within hours.
But the Angle Computer, an electromechanical device from B-52 bombers, offers a working alternative that doesn’t need any signals from space.
This vintage technology solved problems with spherical trigonometry by physically modeling the celestial sphere with moving mechanical parts.
How the B-52 navigated without GPS

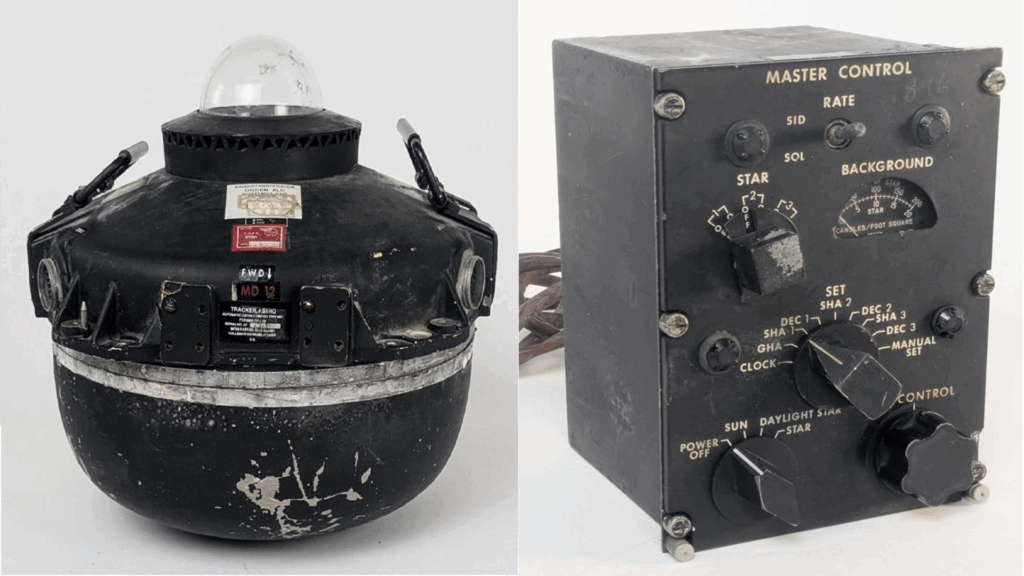

Before satellites existed, B-52 navigators used a system called the Astro Compass to find their course with remarkable precision.
The angular computer was at the heart of this system, performing calculations that would normally require advanced mathematics.
Inside the device, a U-shaped declination arm swung up and down to match a star’s angle above the celestial equator.
The arm constantly rotated about a polar axis driven by the Local Hour Angle input.
A separate latitude arm moved the entire mechanism up or down based on the viewer’s position on Earth.
These three inputs placed a star marker on a physical hemisphere only 2 and 5/8 inches in radius.
The star marker is connected by a semicircular azimuth arc representing the sky from horizon to zenith.
A slider moved along this arc as the star pointer changed position, generating elevation output.
The entire azimuth arc rotates around the zenith point and produces the azimuth output through a gear.
Synchro transmitters then converted these shaft rotations into electrical signals for the aircraft’s navigation system.
The device contained differential gear assemblies to subtract unwanted motions that would otherwise mess up the calculations, and this mechanical approach proved immune to the electromagnetic pulses that would destroy modern solid-state electronics during a CME event.
Angle Computer’s analog precision
The angular computer performed these calculations without vacuum tubes, transistors, or any semiconductor components at all.
Military documents show that the system was accurate enough to generate position lines for bomber navigation across oceans.
A navigator would measure the altitude of a star, compare it to the expected value and draw a line on a map – and three such measurements from different stars would intersect at the aircraft’s actual location.
This technique, called the celestial line of position, has been guiding ships and aircraft since 1837 without any external infrastructure.
The original angle computer was sealed in a pressure cylinder with dry nitrogen to ensure reliability at high altitudes.
Replicating such a device today would require rebuilding manufacturing capabilities that have not existed for decades.
A hardened digital backup with selective shielding may prove more practical than reviving this analog relic.
The elegance of vintage engineering should not hide the great problem of bringing it back from extinction.
Via Ken Shirriff’s blog
