- Prototype drone rotates its entire body up to 25 times per second to blur itself to near invisibility
- The Phantom Twist’s single engine turns the entire airframe in one direction and its propeller in the other
- The AI design pipeline tested 20,000 possible layouts to find the optimal configuration
Drones have a visibility problem. Whether they’re filming guests at a wedding or hunting for candid shots of nesting birds, the moment a drone is noticed it can change the behavior of whatever it’s observing – wildlife scatters, people act differently, and you end up with uncertain results.
A team of engineers at Illinois’ Northwestern University may have found a way around it, and it has nothing to do with camouflage. Their prototype drone, called the “Phantom Twist”, doesn’t try to look like its surroundings. Instead, it spins into a blur so fast that the human eye simply cannot keep up.
The drone rotates up to 25 times per second – far beyond what the eye can resolve into a distinct shape. The drone does not disappear outright, but becomes what the researchers describe as a faint, semi-transparent blob that blends into the sky or landscape behind it. It’s not invisibility in the sci-fi sense, but according to the team, it’s about ten times harder to spot than a conventional quadcopter.
Look at
You’re spinning me right around
The trick is in the design itself. A typical quadcopter has four rotors that rotate while its main body remains completely still, which is exactly why you can still pick it out into the sky—the frame doesn’t move, so your eye locks onto it. Phantom Twist rejects that setup completely. It runs on a single motor and a single propeller, where the propeller turns one way and the rest of the drone’s body turns the opposite way. There is no stationary part left for your eye to lock onto.
Building something that flies stably while turning so fast isn’t a simple engineering feat, though, so the team leaned on artificial intelligence to do the heavy lifting. The process started with about 20,000 computer-generated drone layouts, each checked for stable flight. From there, optimization algorithms repeatedly shuffled the placement of the drone’s key components—motor, propeller, circuit board, battery, and counterweights—so they would never overlap visually as the whole thing spun.
Each candidate design was then simulated by spinning against 100 real-world photo backgrounds and scored using a model built to approximate human vision, with the 500 lowest-scoring designs pushed through additional rounds of optimization before the final version was built.

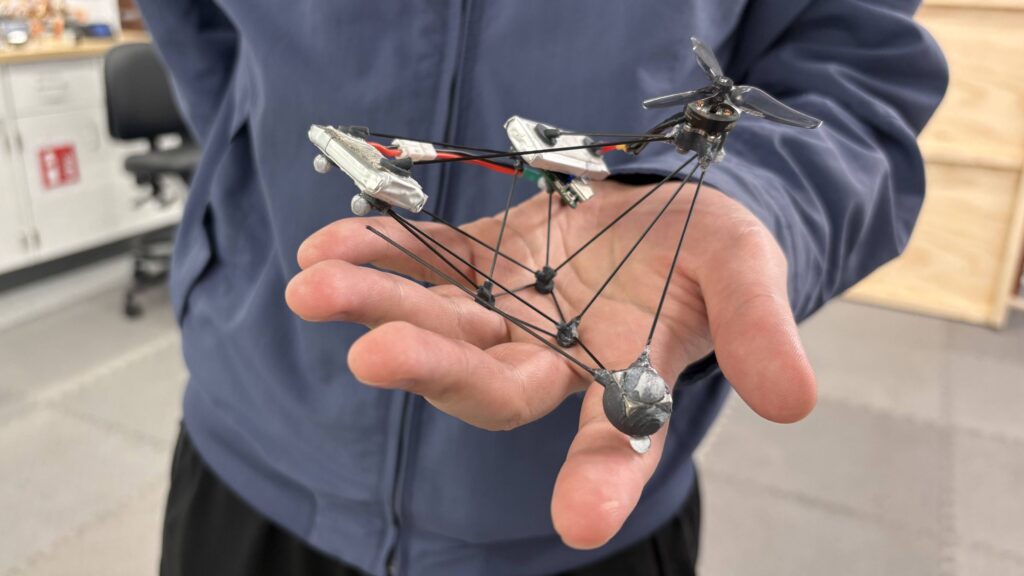

The result spreads its components out at different heights and angles, so that when it’s in motion, everything blurs into a soft haze. It’s neat stuff, and a reminder of how much of what we “see” comes down to how our eyes process movement over time rather than capturing a perfect still image.
However, it’s worth being aware of what Phantom Twist is and isn’t. This is a university research prototype, not a product with a release date or price tag, and it’s still a long way from being ready for real-world implementation.
The propeller is audible, although the body is not very visible. There is also no camera or imaging payload on the current building, raising an obvious question about its stated ambitions for wildlife monitoring and infrastructure inspection. It feels like a drone spinning 25 times a second would need some serious image stabilization or de-rotation trickery before it could record anything useful. The team hasn’t detailed how (or if) they plan to fix it yet.
There’s an inevitable privacy angle to any drone that’s also harder to see, and it’s not hard to imagine less charitable applications of the same principle down the line. For now, though, this is still a lab experiment funded by the National Science Foundation aimed at reducing disturbance to wildlife rather than sneaking up on anyone—and there’s no indication that the spinning-body approach is headed to consumer hardware anytime soon.
